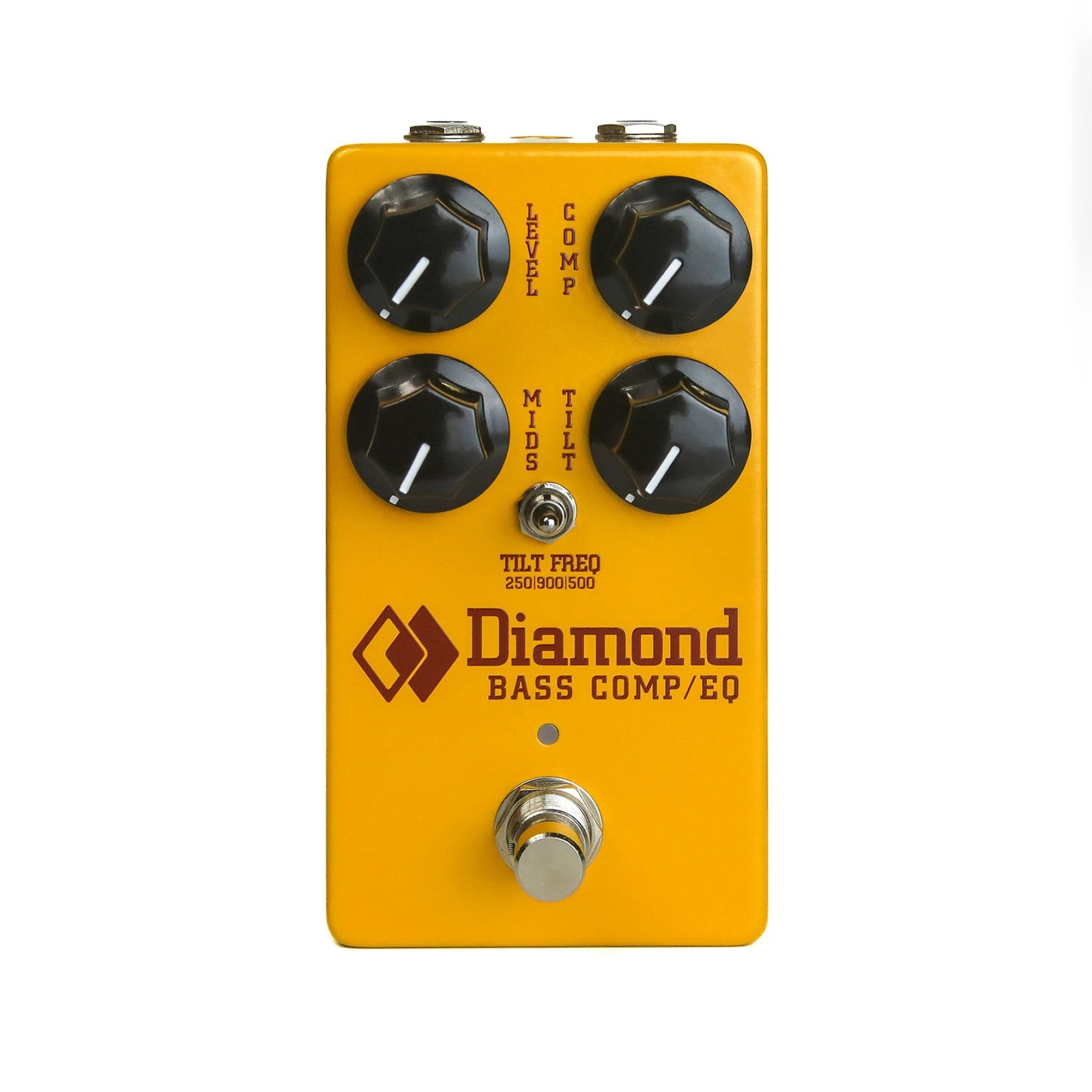

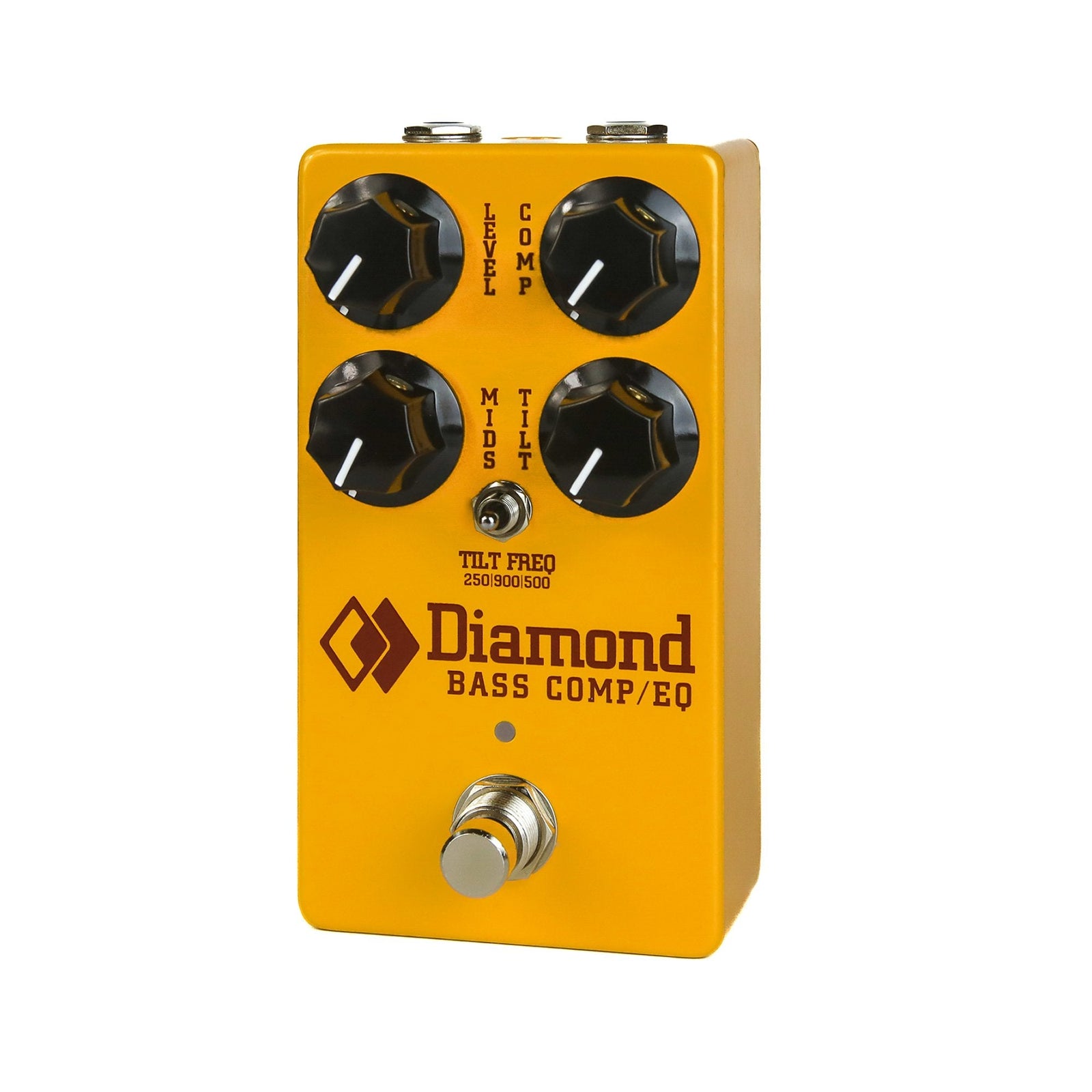

Diamond Pedals Bass Comp / EQ

Your Always-On Tone Enhancer

There's something truly magical about finding the exact compression sweet spot on bass. Enter the Diamond Bass Comp/EQ. Building on the legendary reputation of the original bass-tuned "yellow box," this next-generation compressor maintains the classic optical circuit architecture while massively expanding its range and functionality. This is the pedal that goes on your board—and never comes off.

Acting as a true mastering solution for your pedalboard, the Bass Comp/EQ delivers silky smooth, natural optical compression alongside our signature hi-fi-inspired EQ section, giving you studio-grade tone sculpting right at your feet.

Signature Optical Compression & Studio-Grade Audio Path

Rather than mess with perfection, we kept what made the original iconic and modernized the rest. The Bass Comp/EQ features custom-spec'd opto-isolators for that incredibly smooth, organic squeeze that only optical compression can provide. Combined with an all-analog, Burr-Brown audio path, your low-end stays punchy, warm, and crystal clear without any unwanted coloration or loss of dynamics.

Advanced EQ Sculpting for Bass

You can now sculpt your tone in the exact same box that masters it. The new active EQ section provides unprecedented control over your bass frequencies:

• 3-Position Tilt EQ: Quickly pivot your entire frequency response to add high-end articulation or massive sub-bass warmth. Features a centre-detent control and a selectable fulcrum frequency switch (250 Hz, 500 Hz, or 900 Hz at +/- 6 dB).
• Mid EQ Control: A dedicated Mid boost/cut control centered at 500 Hz (+/- 10 dB) allows you to effortlessly carve out space in a dense mix or push your bass forward for aggressive pick playing and slap styles.

The New Standard in Pedalboard Utility

Engineered for the modern bassist's needs, the Bass Comp/EQ packs immense power into a space-saving design without sacrificing an ounce of quality. Featuring top-mounted jacks, modern soft-touch relay true bypass switching, and massive headroom via 9-18VDC operation, it integrates seamlessly into any modern touring or studio rig.

Technical Specifications

• Effect Type: Optical Compressor and Active Equalizer
• Audio Path: 100% Analog Burr-Brown audio path
• Tilt EQ Fulcrum Frequencies: 250 Hz, 500 Hz, or 900 Hz (+/- 6 dB)
• Mid EQ Center Frequency: 500 Hz (+/- 10 dB)
• Switching: Soft-touch Relay True Bypass
• Input / Output: Top-mounted jacks
• Input Impedance: Greater than 1 MΩ
• Output Impedance: Less than 10 KΩ
• Power Requirements: 9-18 VDC (negative tip, 2.1mm barrel)
• Current Draw: 22mA @ 9V
• Dimensions: 4.8" x 2.64" x 1.58" (122 x 66.98 x 39.64 mm)
• Weight: 280g
• Origin: Proudly designed and hand-built in Montreal, Canada.
