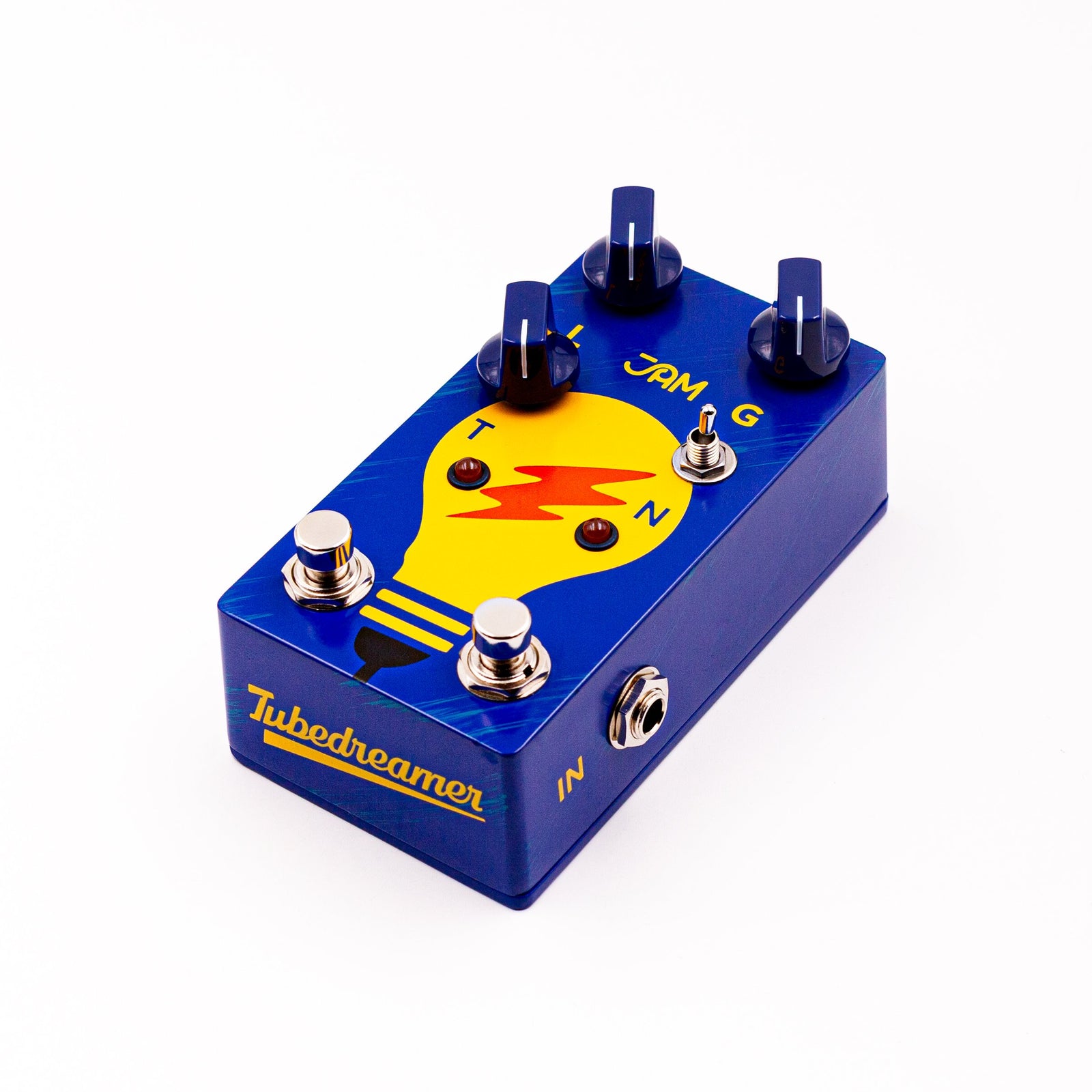

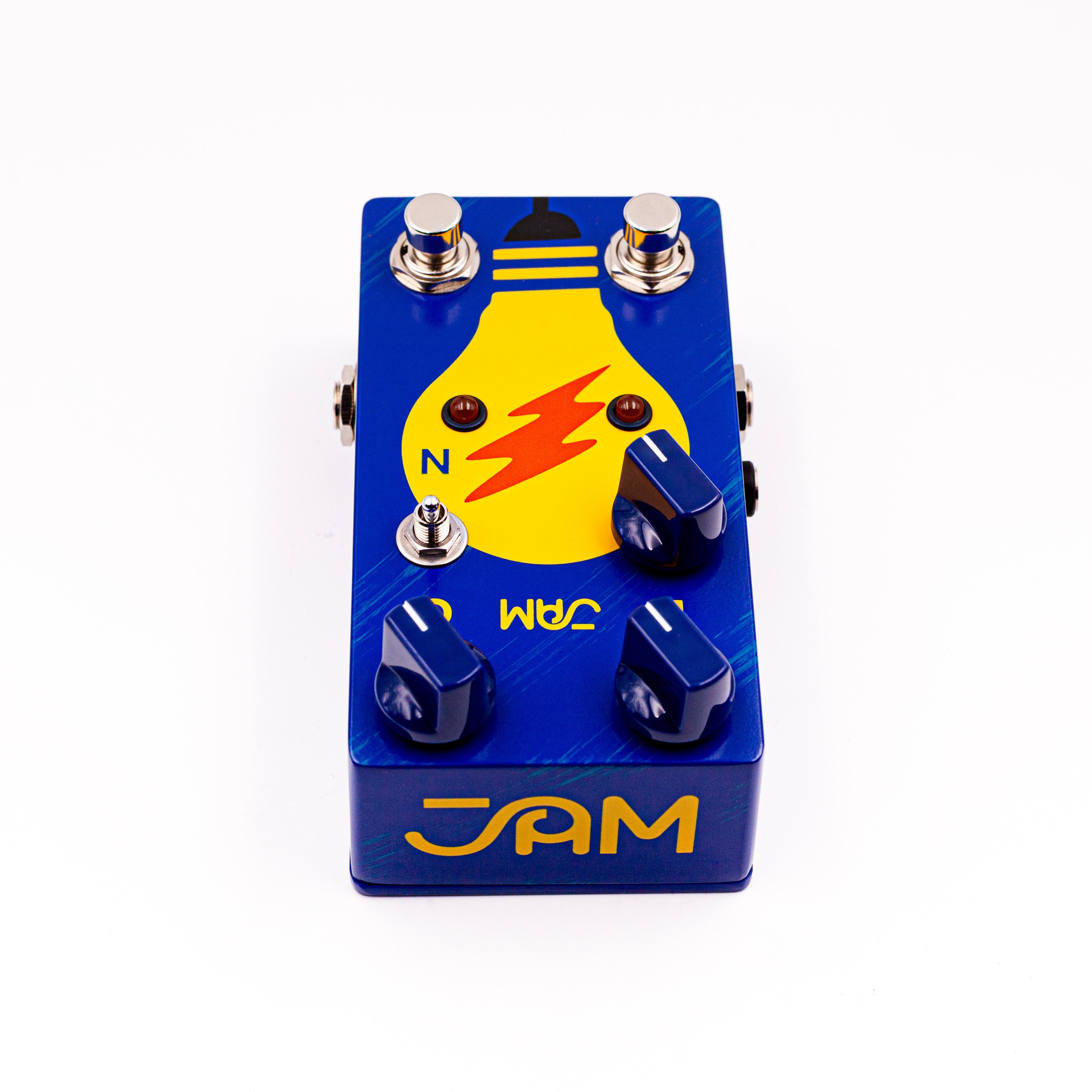

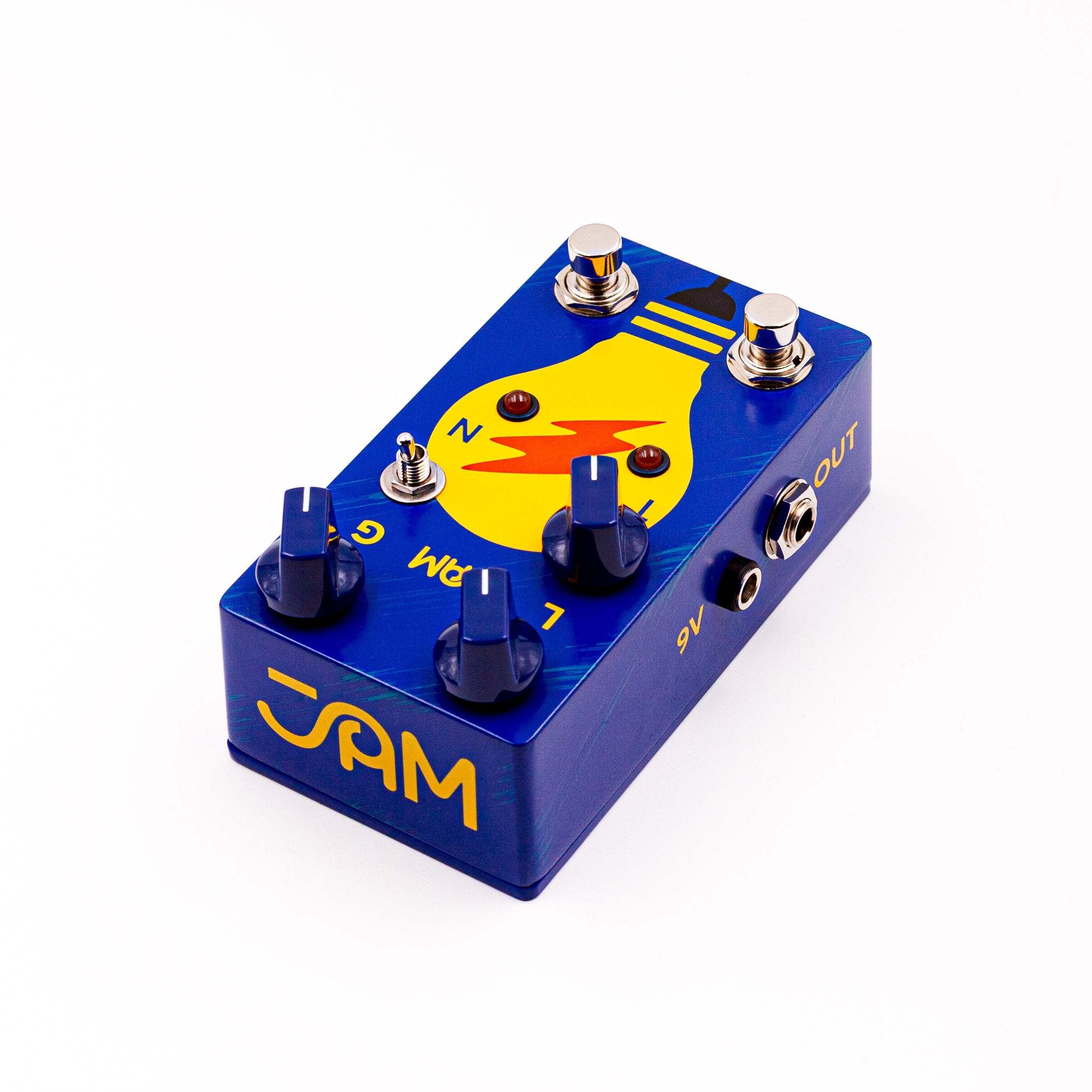

JAM Pedals Tubedreamer MK.2
$ 279.00
Evolving the Classic 808 Overdrive
When JAM Pedals first introduced the Tubedreamer in 2006, the mission was simple: build the world’s best 808-style overdrive. The Tubedreamer mk.2 pushes that legendary design even further. Delivering a warm, rich, and highly articulate overdrive, it features a carefully tuned midrange designed to effortlessly cut through any mix without ever sounding harsh or congested.
Whether you are looking for edge-of-breakup clarity or searing lead tones, the mk.2 features improved low-gain resolution. This provides finer control where it matters most, unlocking a massive range of highly usable tones at lower settings. At its core, the pedal proudly retains the legendary JRC4558D chip—the exact same component found in the most sought-after vintage units.
Next-Generation Features & Dynamic Control
The Tubedreamer mk.2 isn't just a reissue; it is a true performance tool built for modern players.
- Dynamic Clipping Options: A 3-diode asymmetrical clipping stage enhances touch sensitivity, naturally responding to your picking dynamics. New to the mk.2, you can toggle to a "No-Diode" clipping mode (N) for a massive, open, and amp-like response with maximum headroom.
- Dual Footswitch Design: For the first time, the high-gain stage is accessible via a dedicated footswitch, instantly transforming your rhythm tone into a soaring lead.
- Precision Internal Tweaking: Dual internal trimmers offer independent output level control for the high-gain stage in each clipping mode, allowing you to perfectly match or boost your signal.
- Smart Power-On: A selectable power-on state lets you choose whether the pedal automatically engages or remains bypassed upon startup.

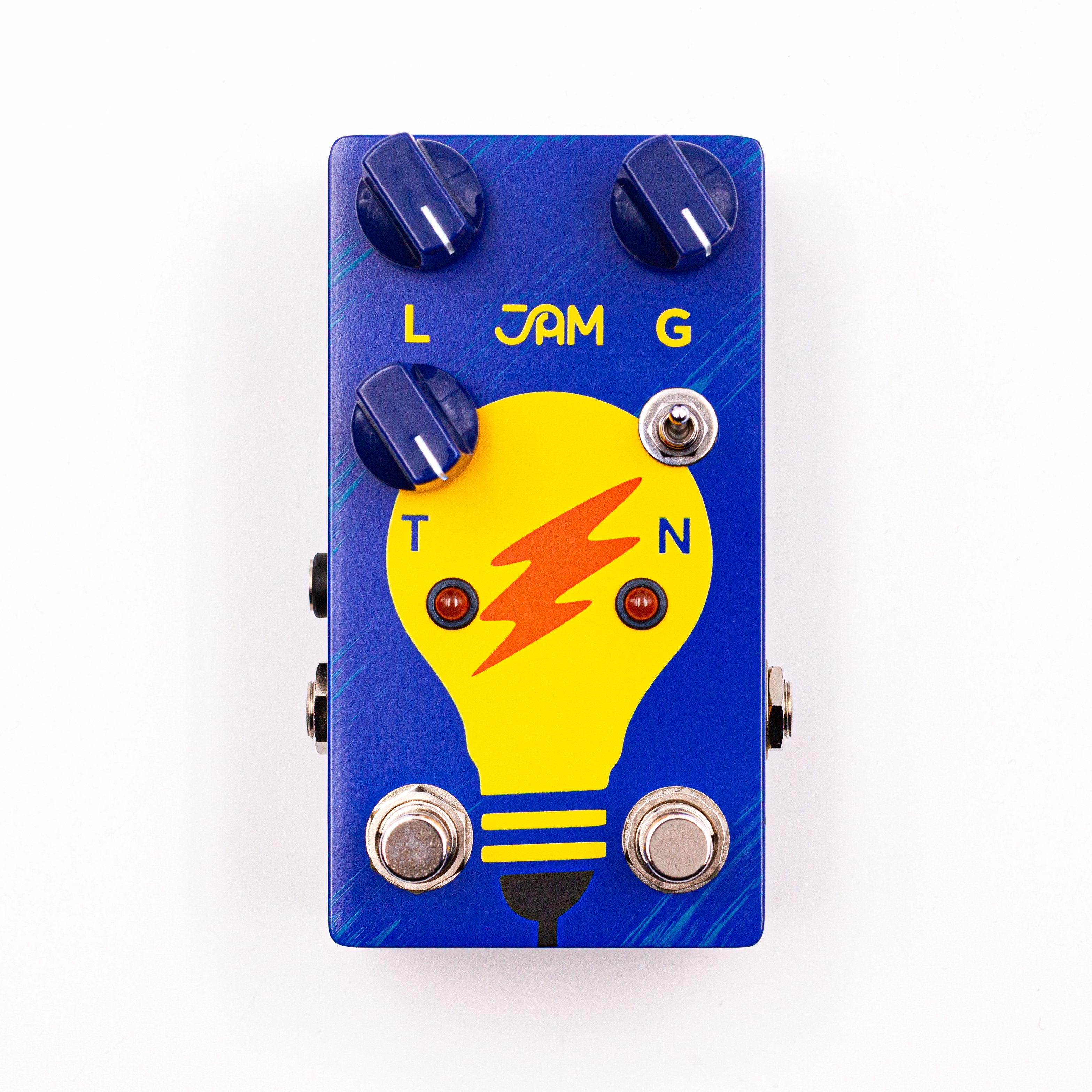

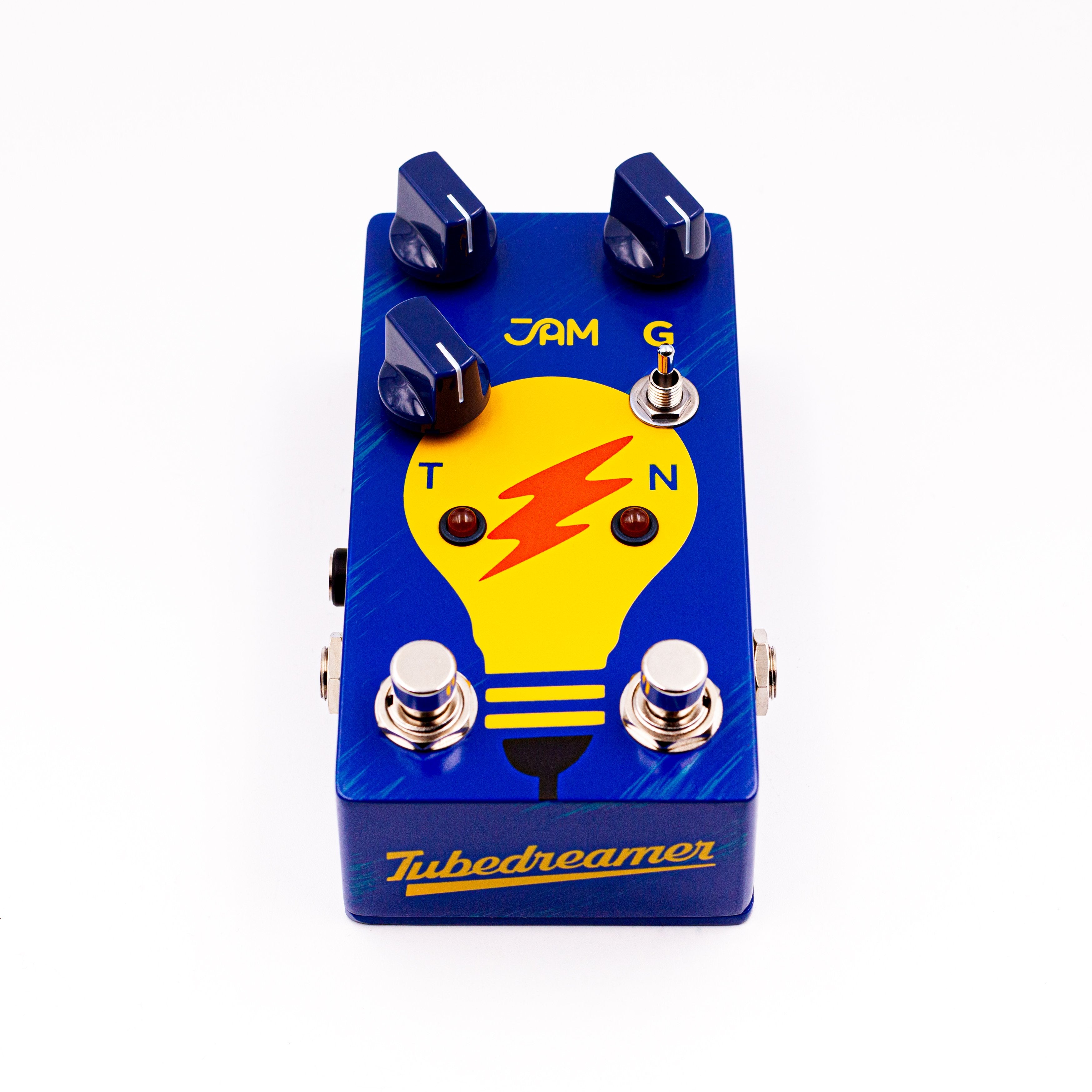

Controls
- LEVEL: Controls the overall output volume.
- TONE: Adjusts the high/low tonal balance to fit your rig.
- GAIN: Sets the saturation and overdrive level.
- CLIPPING TOGGLE: Selects between standard asymmetrical clipping and the open No-Diode mode (N).
- HIGH GAIN FOOTSWITCH: Instantly engages the secondary high-gain stage.
Specification
- Bypass: True Bypass
- Power Requirements: 9V DC adaptor (tip-negative)
- Power Consumption: 60 mA
- Input Impedance: 500 kΩ
- Output Impedance: 5 kΩ
- Dimensions: (L x W x H) 7.5 x 12 x 5.6 cm (2.9 x 4.7 x 2.2 inches) Includes jacks/controls
- Weight: 280 g (0.6 lbs)
