29 Pedals EUNA - Limited Edition Black
$ 299.00
29 Pedals EUNA — Elite UNity Amplifier

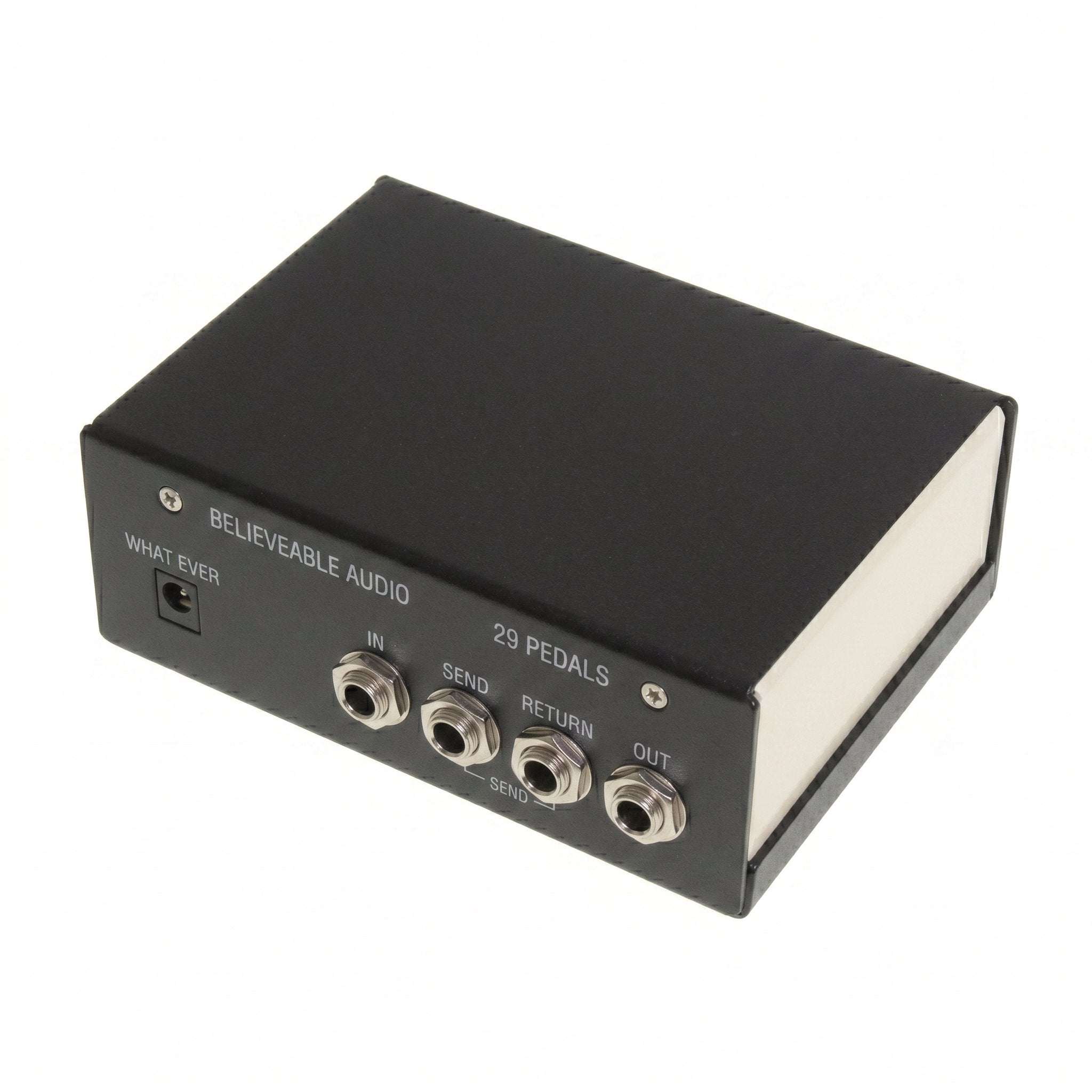

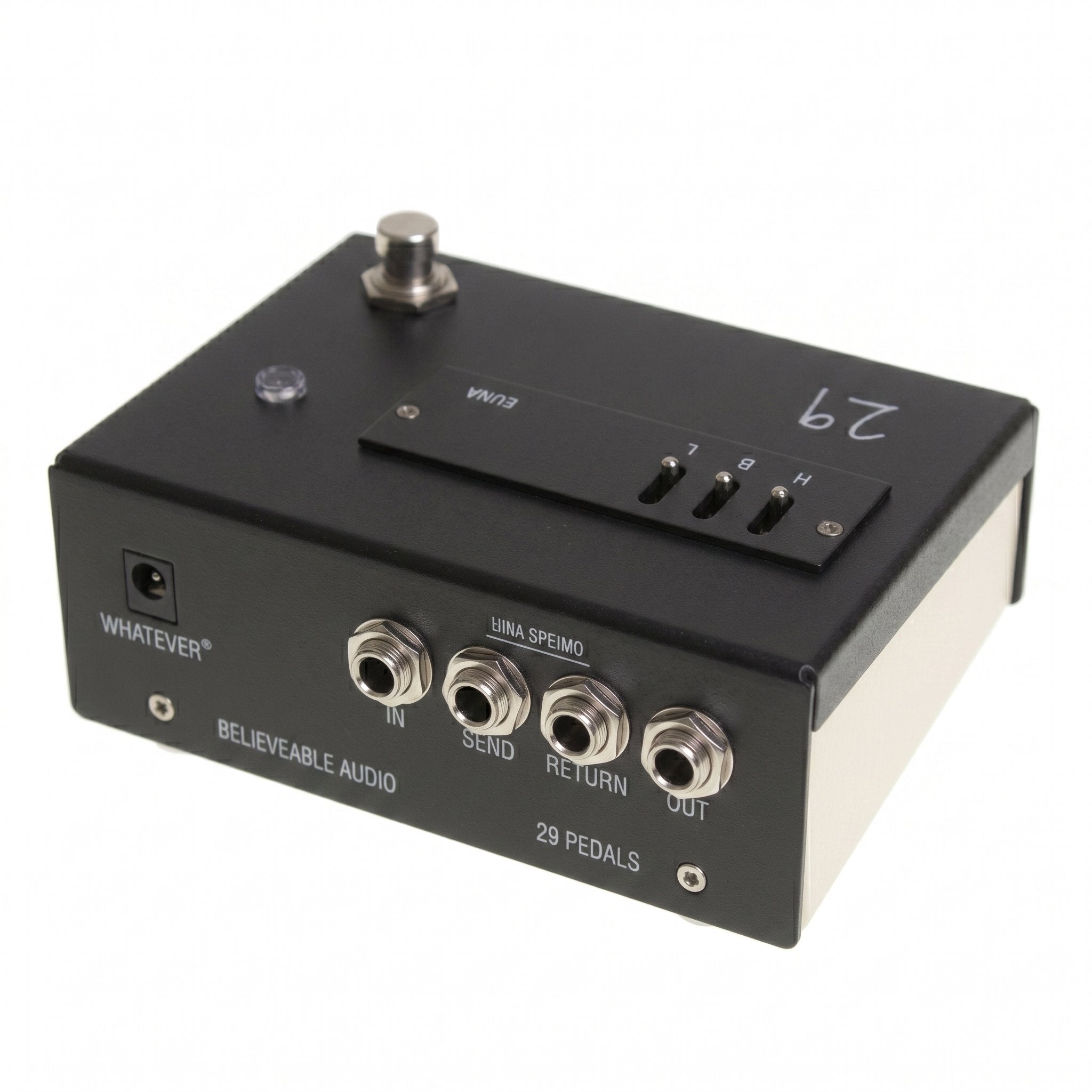

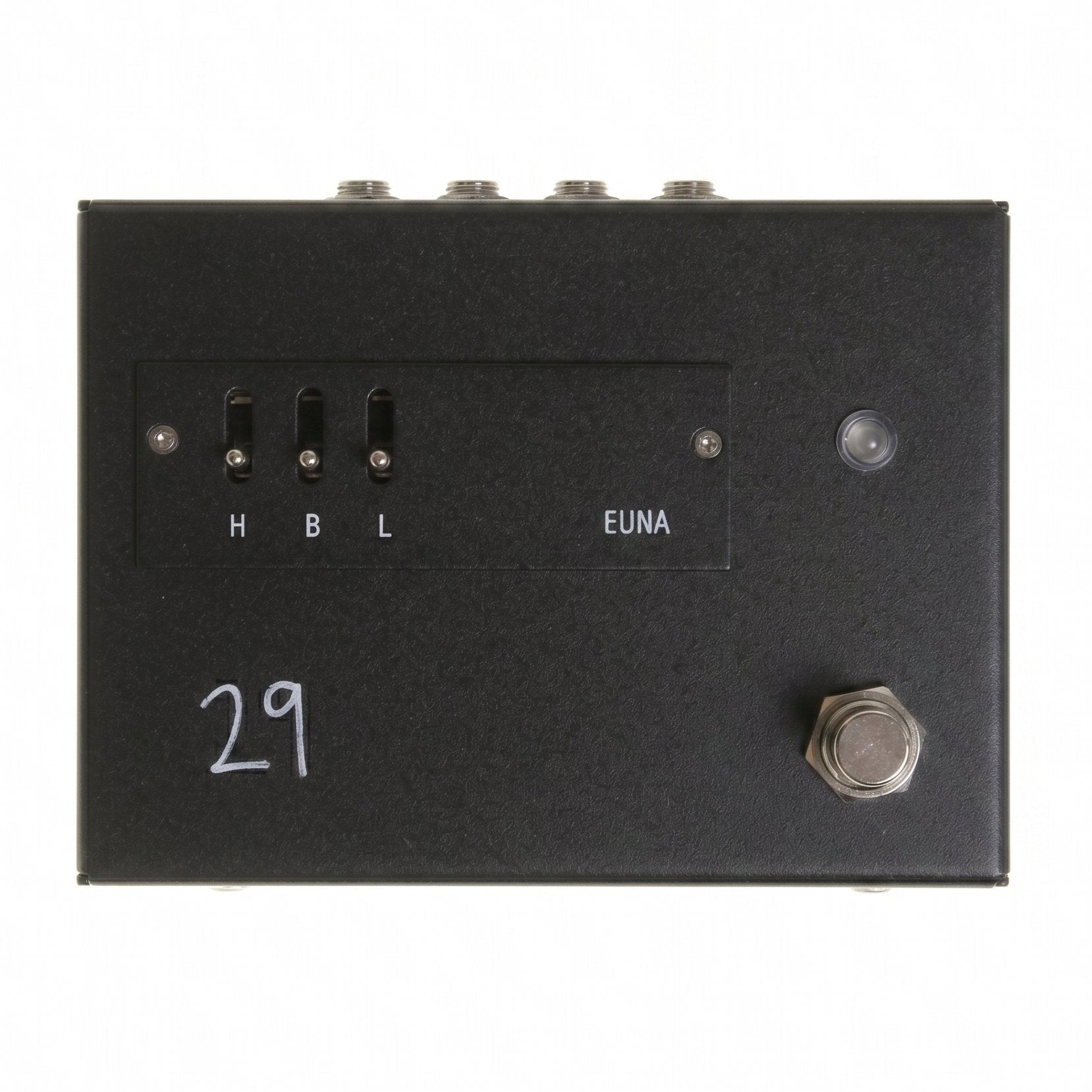

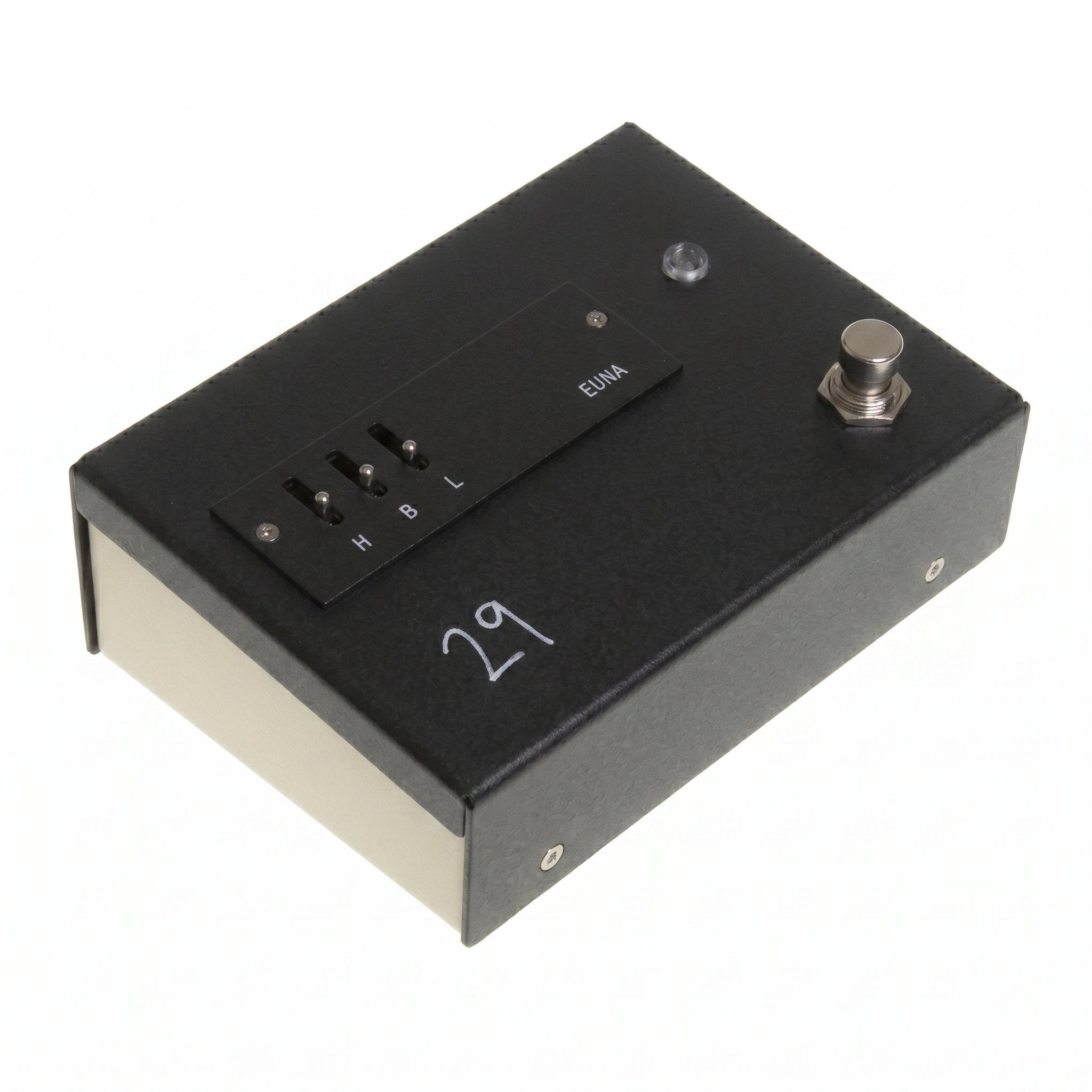

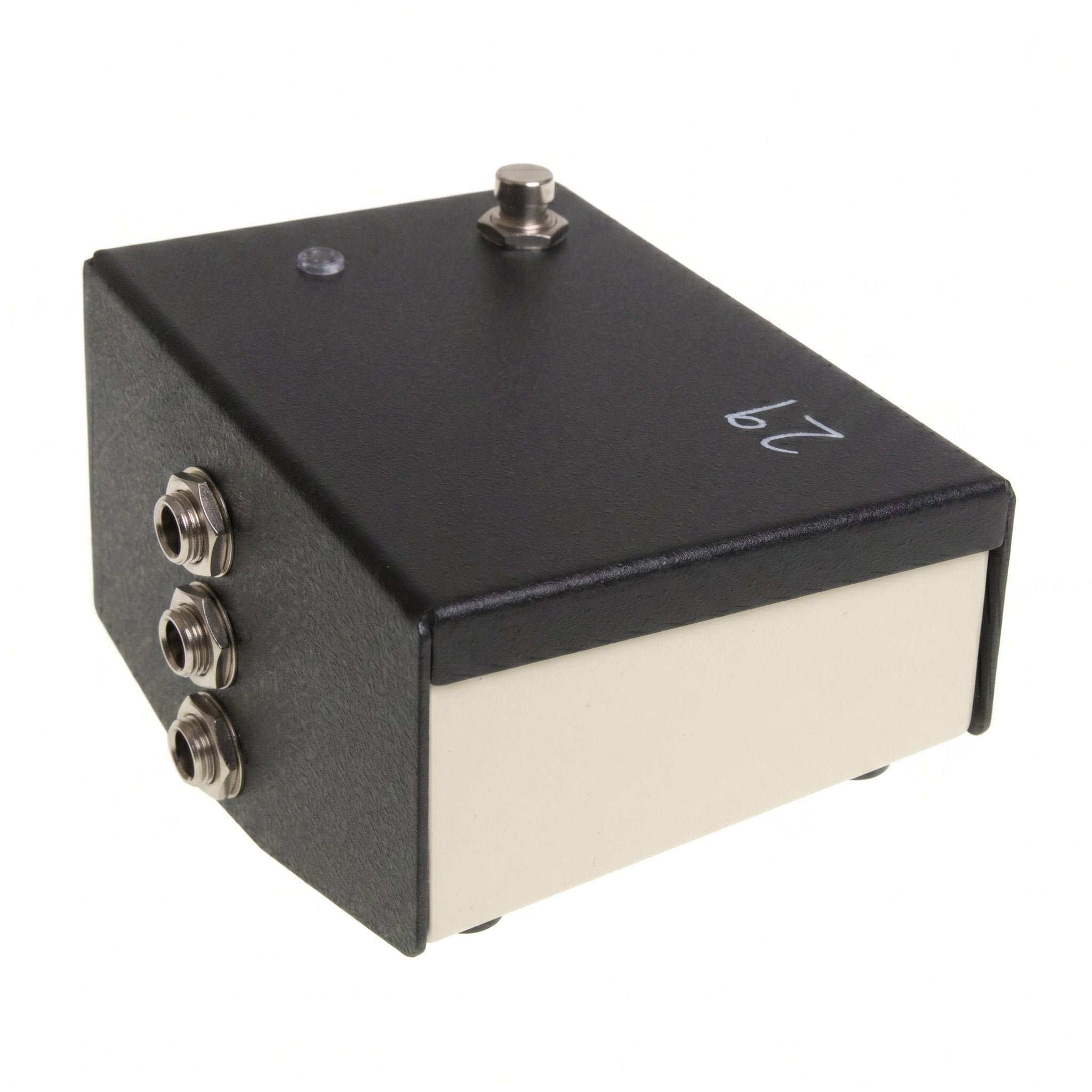

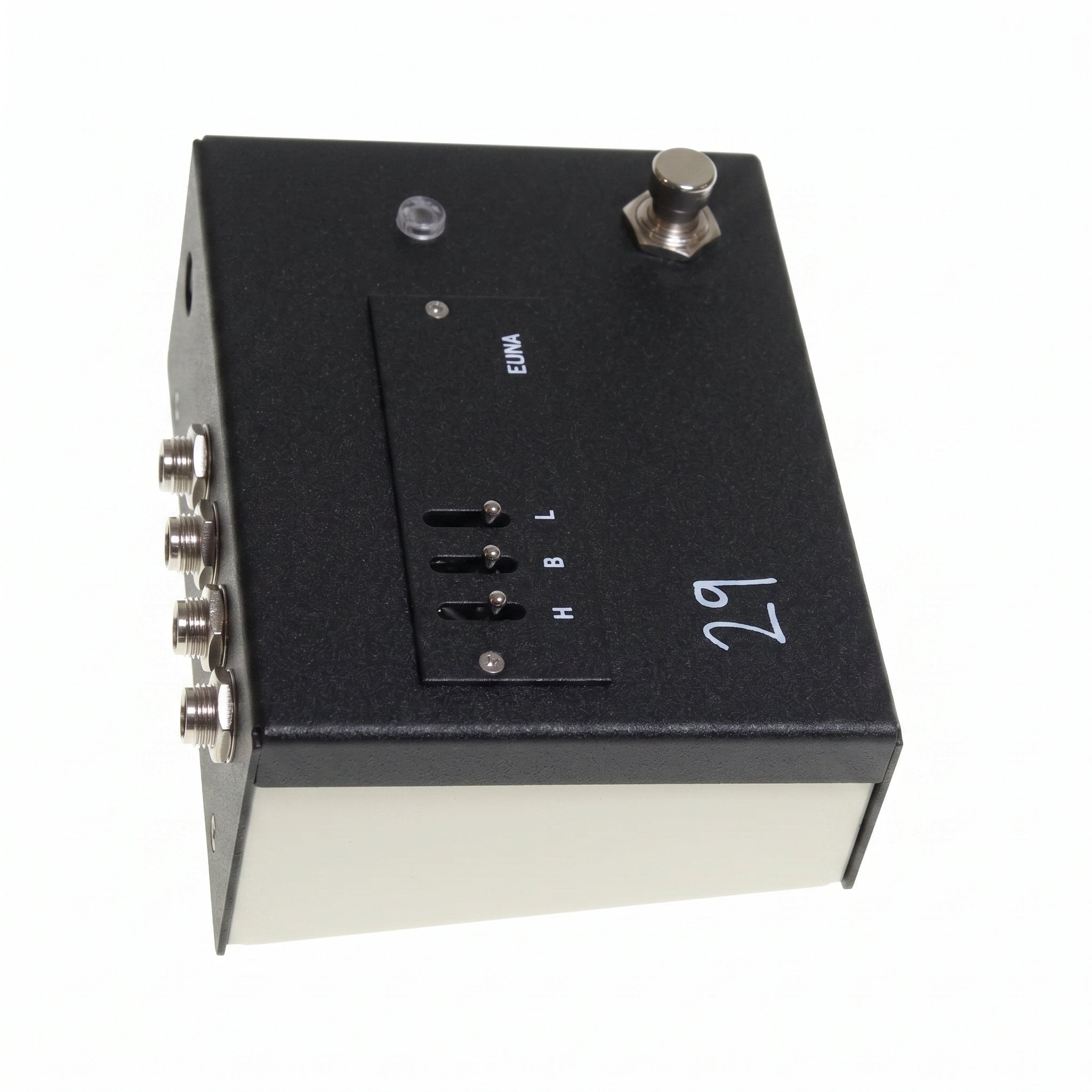

EUNA is the Elite UNity Amplifier from 29 Pedals — a console-grade input driver built to protect and condition your instrument's signal for whatever lies ahead in your chain. Plug in first, and feel the difference: more chime, more snap, more dynamic range, and a signal that stays pristine from your pickups all the way to your amp.
Three Sweetening Circuits
- Harmonics — pushes the air band where guitar harmonics live; adds sweet, tube-like chime to any rig
- Bright — adds clarity and presence without harshness
- Low — restores low-end lost through your pedal chain with just the right amount of warmth
Fuzz & Vintage Effects Loop
EUNA features an effects loop that activates when the pedal is OFF — designed for vintage fuzz and wah circuits that don't want to be buffered. Switch between a buffered input and guitar-direct-to-fuzz with a single footstep.
Key Specs & Features
- +18dBu input headroom with THD better than 0.01% — no electric guitar can clip this
- Flat from 10Hz to 50kHz — absolute transparency with perceived tonal sweetness
- Drives down to 600 ohms perfectly flat
- Draws ~120mA
- WHATEVER power supply — accepts 7.5–35V AC or DC, either polarity, with no change in tone
- DIY-friendly — socketed opamp, 4-screw access to the full audio path, 1% thin-film resistors, WIMA film caps
- 4-layer PCB with 2oz copper throughout; star-ground configuration; no electrolytics in the signal path
- Footprint: 125mm x 92mm (4.875" x 3.625"), 51mm (2") tall
Pair EUNA with OAMP at the end of your board for a complete signal management system. Handcrafted by 29 Pedals in California.
