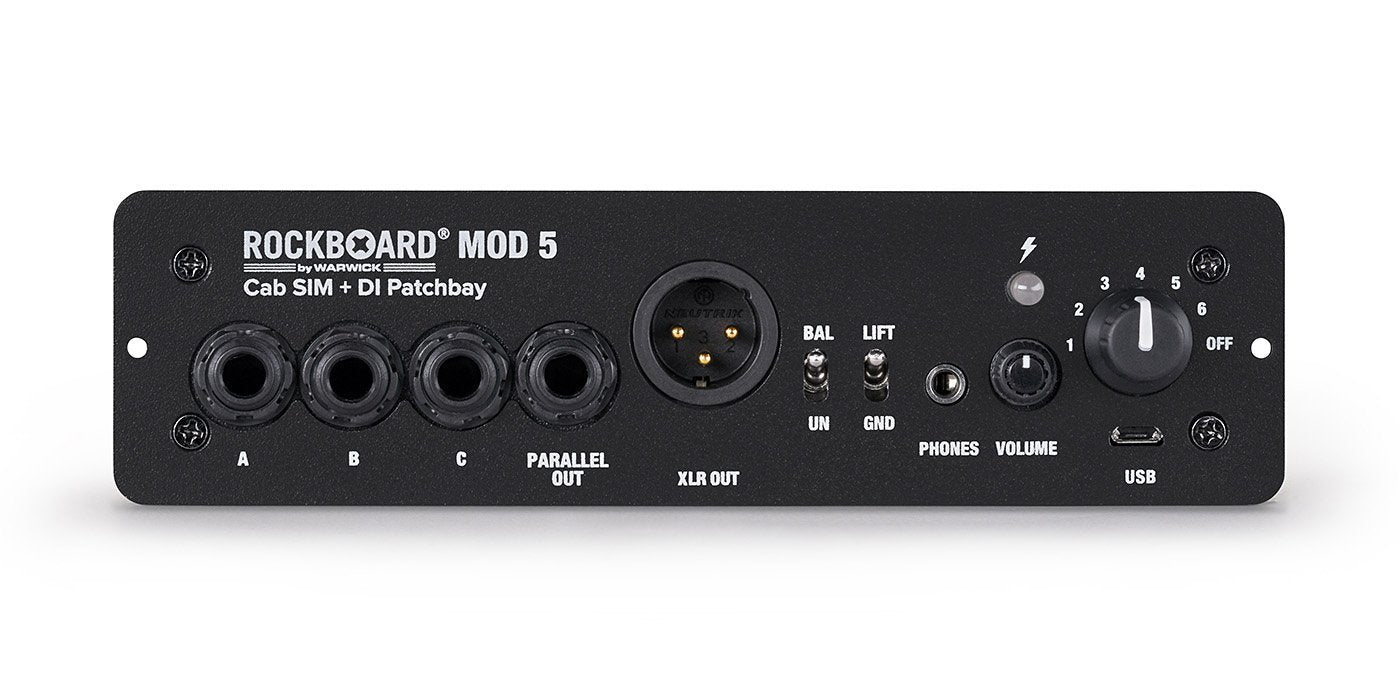

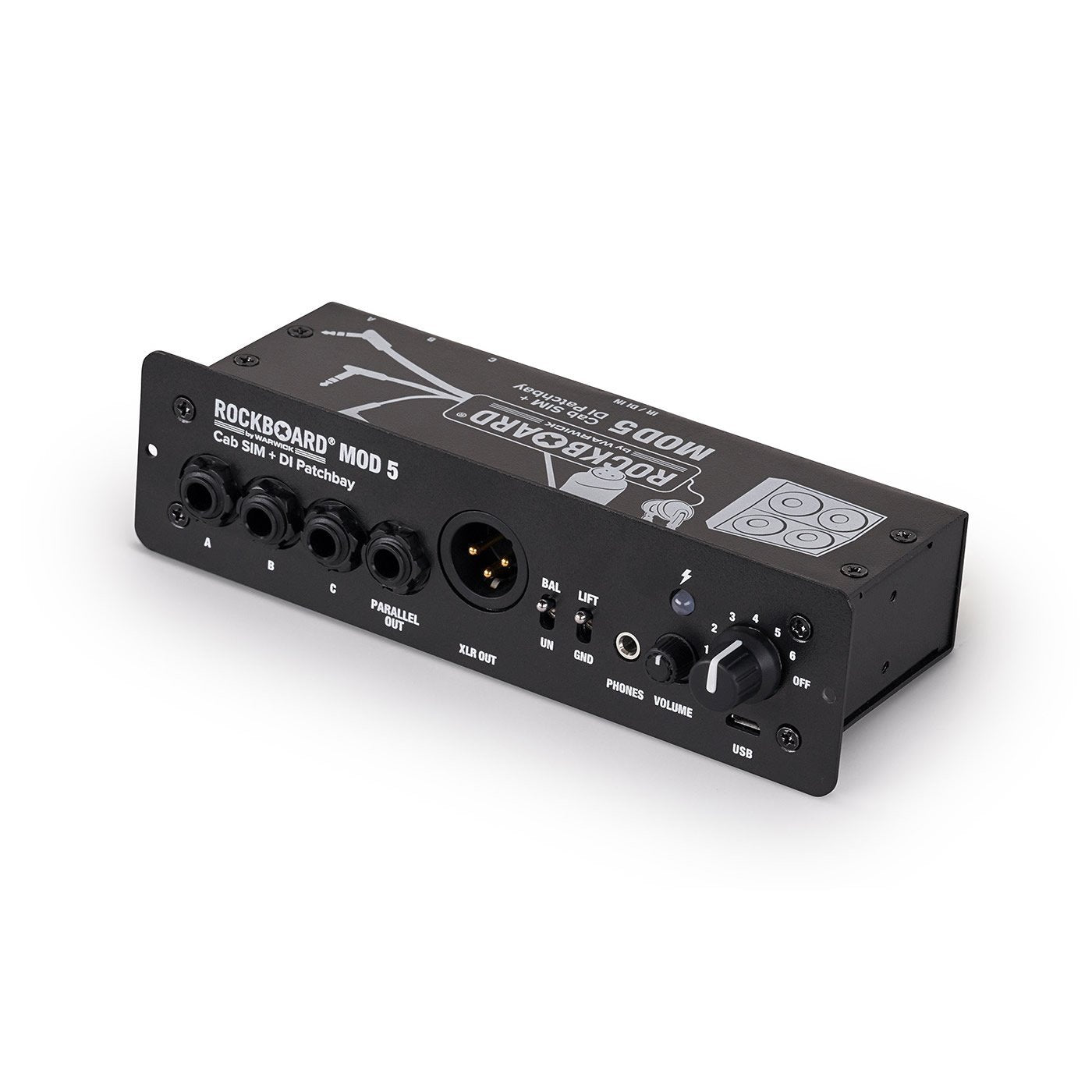

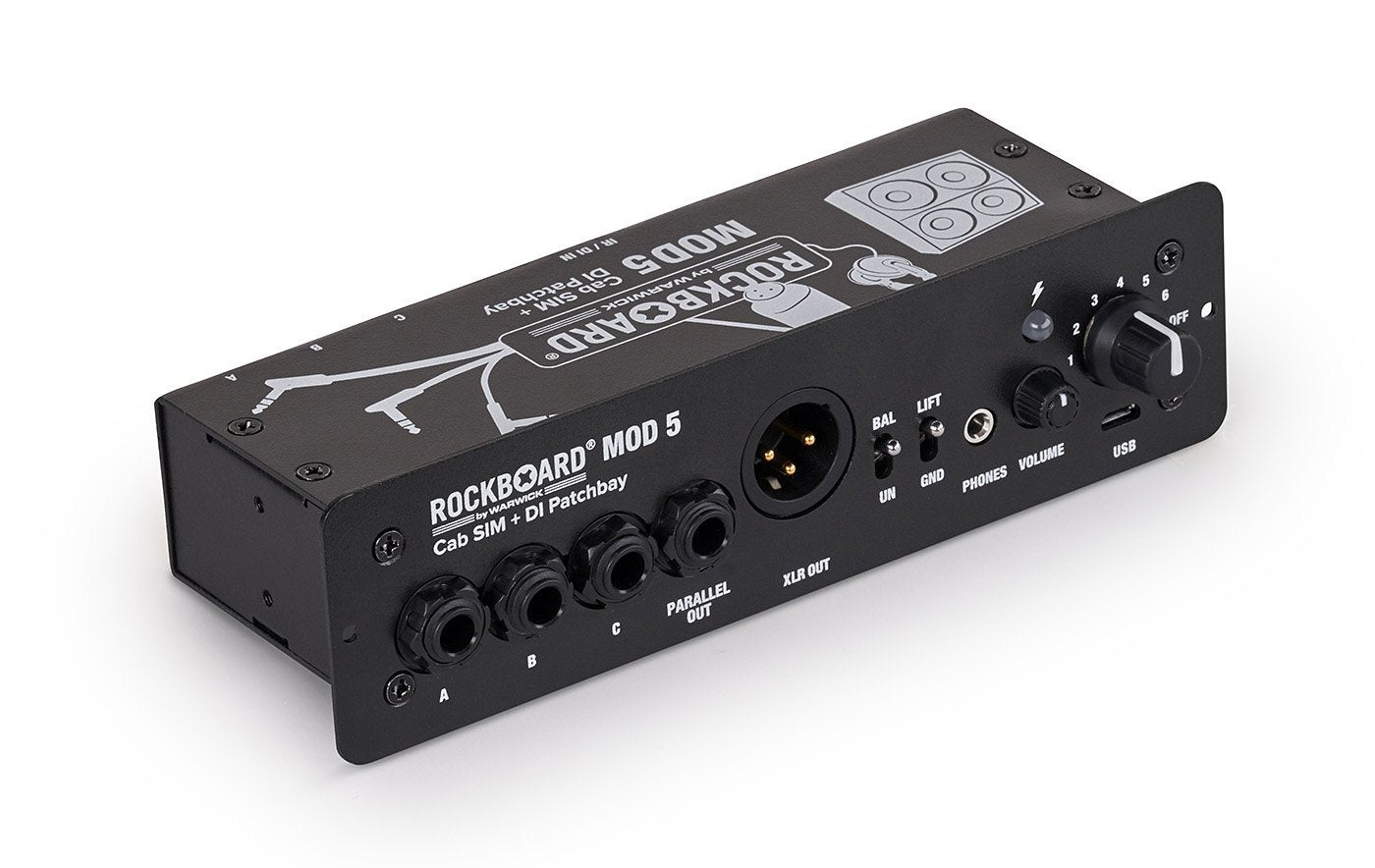

Rockboard MOD Series Patch Bay MOD 5 DI + Speaker Simulator Patch Bay

Available for Immediate Pick-Up In-Store


The RockBoard® MOD 5 Cab SIM + DI Patchbay offers customizable, IR-based stereo speaker cabinet simulation, an active DI box, as well as a simple solution to organize all the connections to and from your effects setup. Whether you are using a RockBoard® or any other brand pedalboard - the MOD 5 will open completely new possibilities.

The speaker cab simulation & DI let's you go direct, providing YOUR sound, whatever backline is being provided at the venue you're playing. You want to use your favorite cab? No problem, load an impulse response of its sound into the MOD 5 and you have it with you, wherever you go.

The patchbay part is designed to route connections from underneath your pedalboard to its front, in order to give you a central access point to your setup and tidy up your connections.

For silent and on the road practicing, the MOD 5 also provides a headphone amplifier with adjustable output volume.

  • IR based speaker cabinet simulations
  • 6 integrated IRs based on popular guitar and bass cabinets
  • Support of custom IRs (max. 1024 pts.)
  • active DI Box
  • Selectable MONO/STEREO input
  • Selectable UN/BALANCED output
  • Connects to PC/MAC editor via USB
  • integrated stereo headphone amplifier with adjustable volume
  • micro USB connection for firmware updates and loading custom IRs

Additional Features:

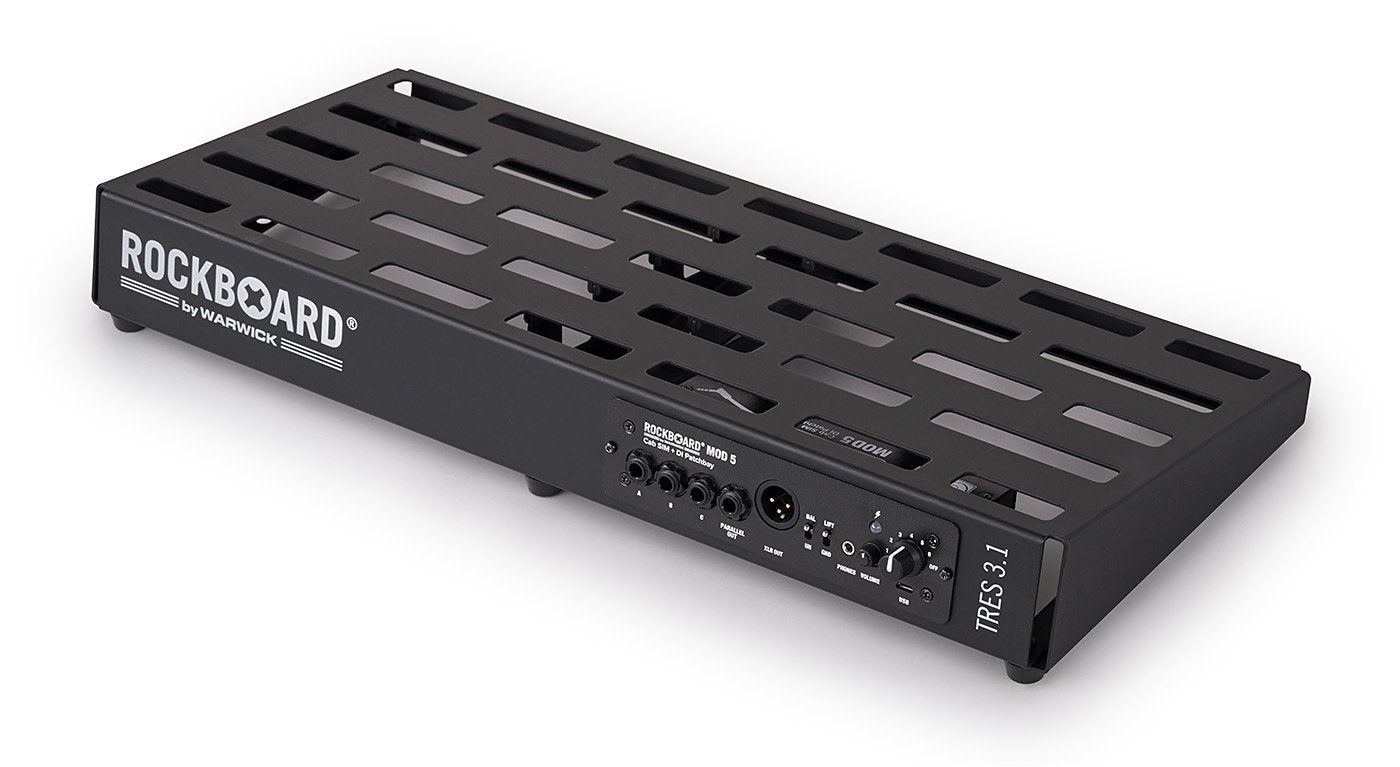

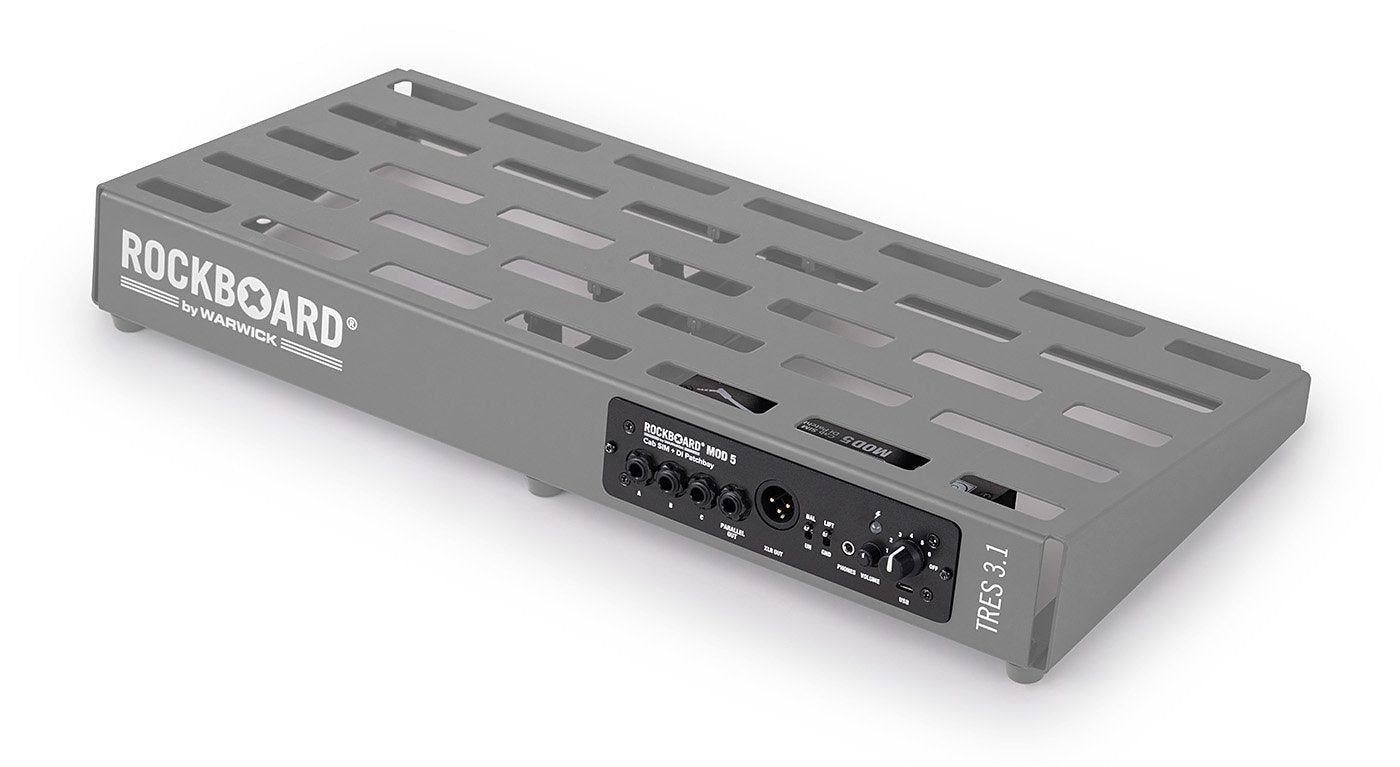

  • fits MOD slots in RockBoard® pedalboards
  • compatible with a wide variety of other pedalboards
  • acts as central access point to your effects setup
  • establishes clean cable paths to and from the pedal board

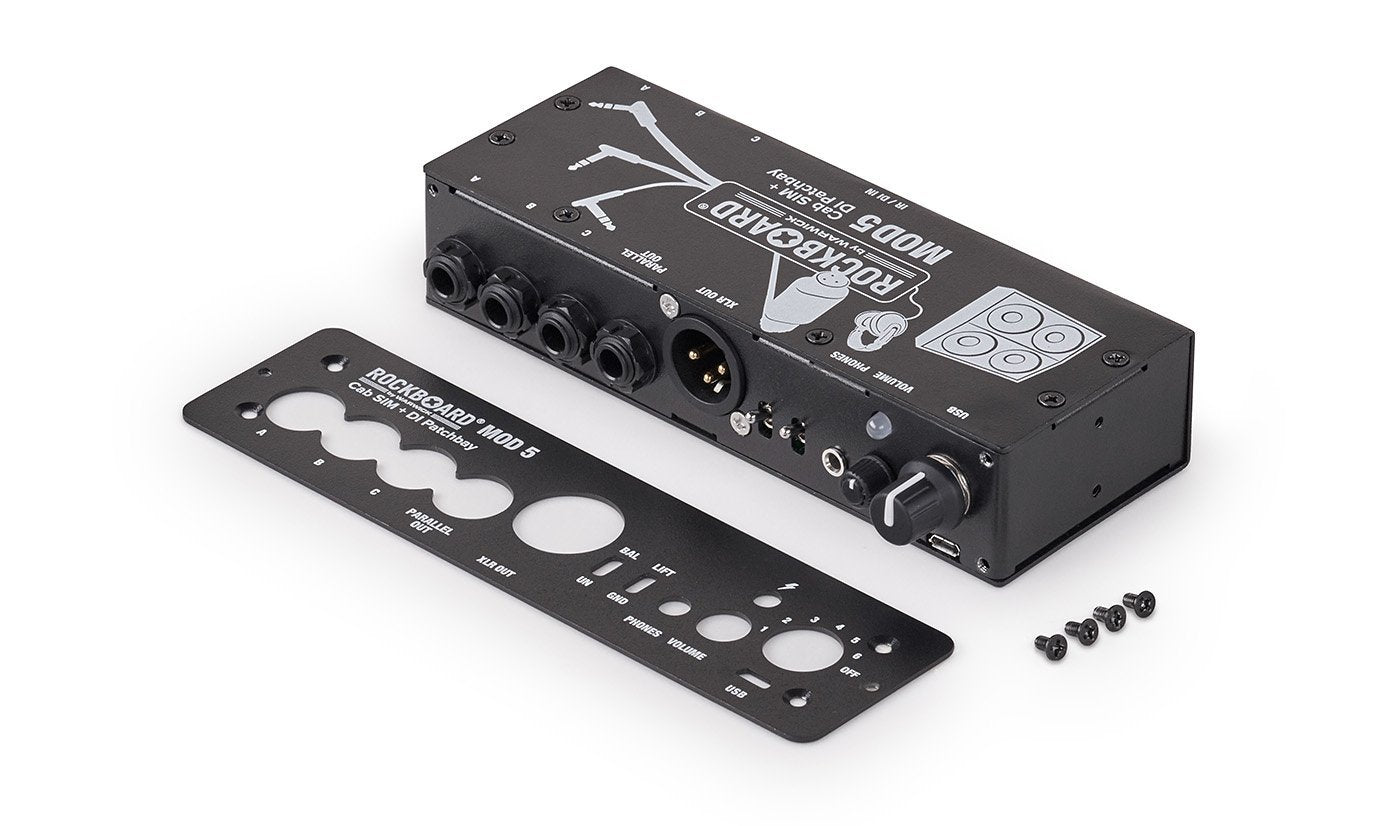

  • detachable front plate for mounting on top or underneath pedalboards
  • power supply via optional 9V DC power adapter
  • incl. mounting screws, counter nuts and TX wrench
