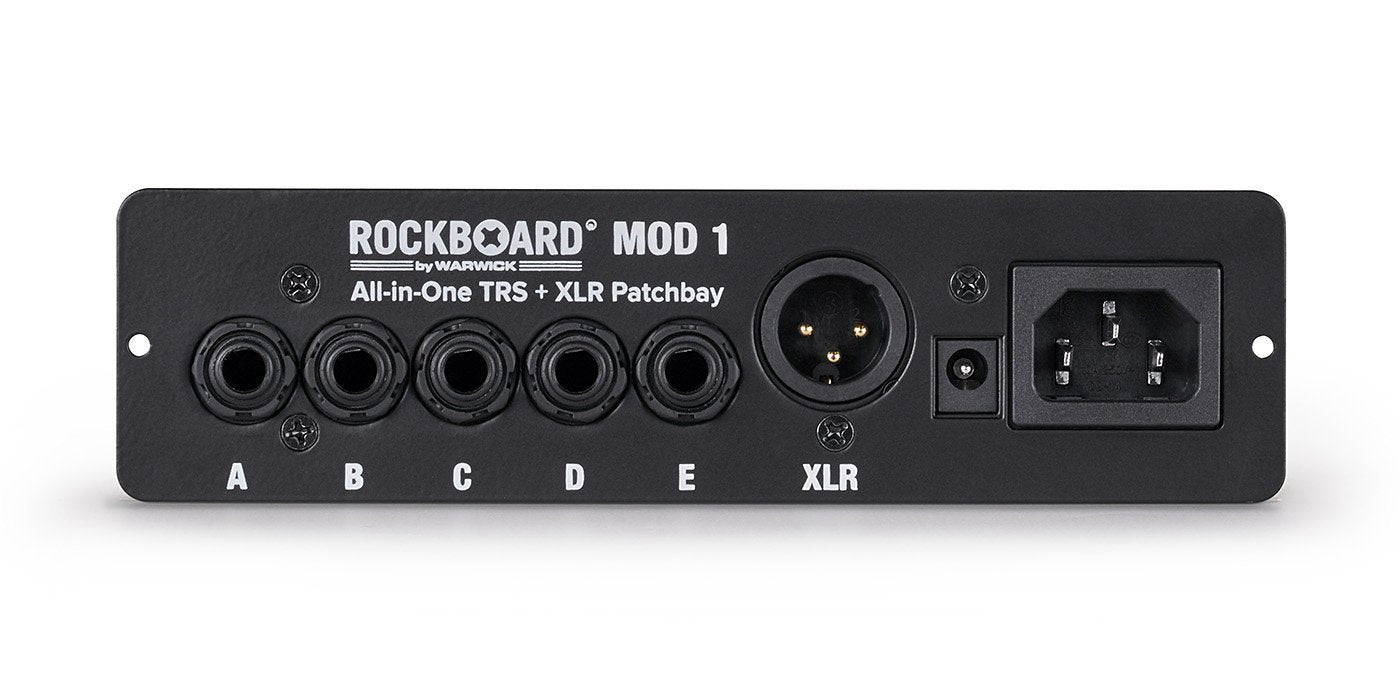

Rockboard MOD Series Patch Bay MOD 1 with XLR

Notify me when this product is available:

  • all-in-one patchbay for pedalboards

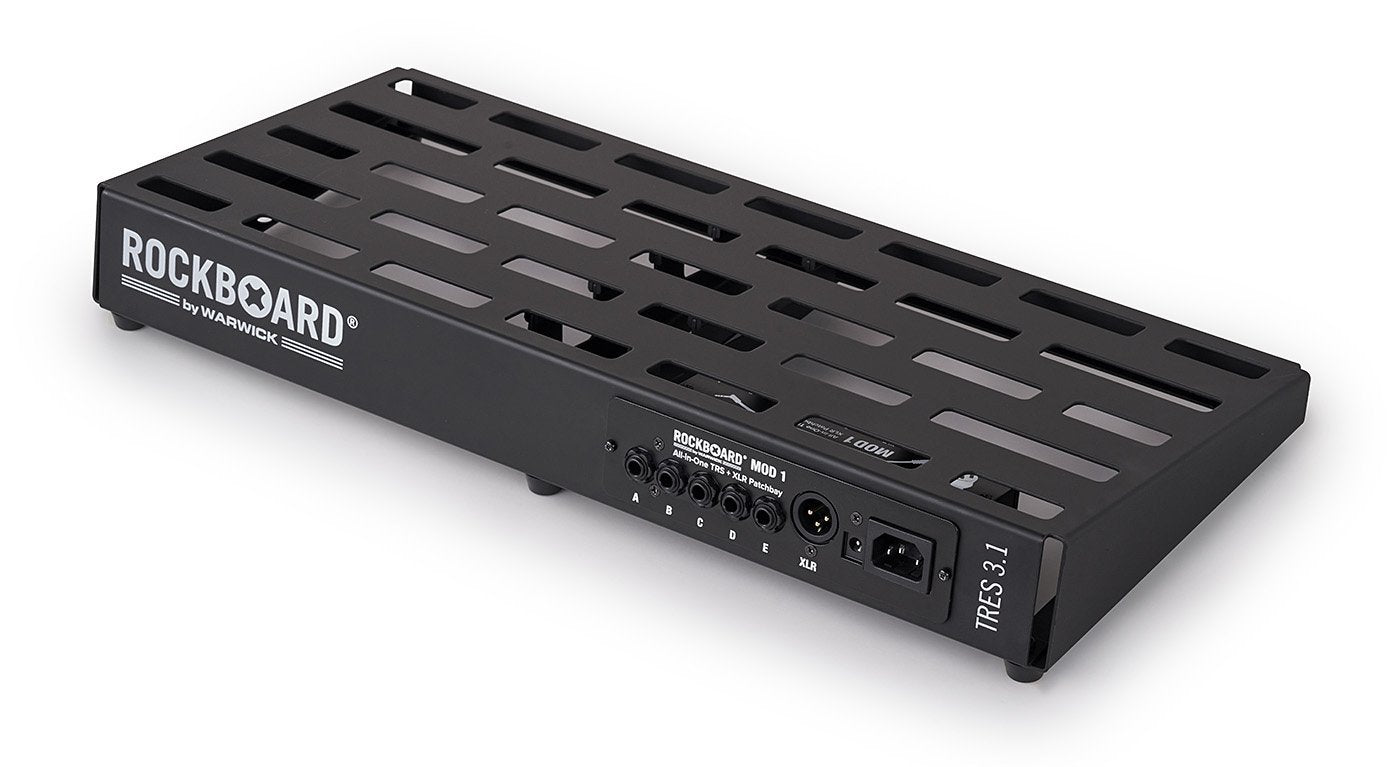

  • fits MOD slots in RockBoard pedalboards
  • compatible with a wide variety of other pedalboards
  • acts as central access point to your effects setup
  • establishes clean cable paths to and from the pedal board
  • detachable front plate for mounting on top or underneath pedalboards
  • 5 x 6,3 mm / ¼" TRS thru
  • 1 x XLR thru (male front / female back)
  • 1 x DC 2,1 x 5,5 mm barrel thru
  • 1 x AC IEC thru (male front / female back)
  • all connections mirrored on backside
  • dimensions with front plate (W x D x H) 175 x 85 x 47 mm / 6 7/8" x 3 3/8" x 3 15/16"
  • dimensions without front plate (W x D x H) 160 x 85 x 33 mm / 6 5/16" x 3 3/8" x 1 5/16"
  • weight 450 g / 0.99 lbs
  • incl. mounting screws, counter nuts and TX wrench
